When the dialogue of IJCAD is partially display cut

Updated : 2017-07-14 00:44:52 UTC

Applicable Products : IJCAD 2013 / 2014 / 2015 / 2016

In order to display the text well according to the diffusion of high resolution environment, the text size may be set Large size, or the display scale may be changed.

If you execute IJCAD in these setting enviroment, some part of the dialogue of IJCAD could not be displayed perfect in the window.

In this case, try the following process :



In case of Windows 10

  1. Selectthe "Setting" button from the start button of Windows.

  2. Select "System" button in this window.

  3. Select "Display" of the left column, then tune the scale of  "Change the size of Text, Application, and other items".
    Every display has each scale setting in windows 10, so try to setup all the setting, connecting to each display one by one.
    (Switch by the "Display No.2, 1" displayed in this window.)
  4. When the setting is changed and User LogOff or restarting system is required, follow these instructions.



In case of Windows 7 / 8

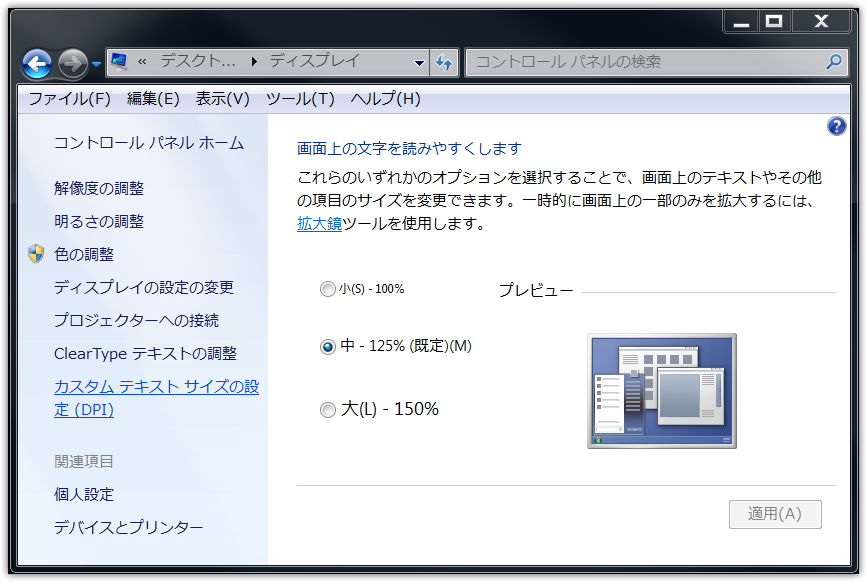

  1. Display the Control Panel window and select "Desktop Customize" - "Display".
  2. Select "Custom Text Size setting (DPI) ".
  3. Check "Use the DPI scaling of WindowsXP format" box and click "OK" button.
  4. System will show the message if you want to LogOff and activate this setting valid or not, then try to
    LogOff and LogIn again.
  5. Finish.
