Drawing using a script

Updated : 2020-09-07 00:30:43 UTC

Applicable Products : IJCAD all


How to use the script

  1. On the command line " SCRIPT type", and run the SCRIPT (run the script) command.

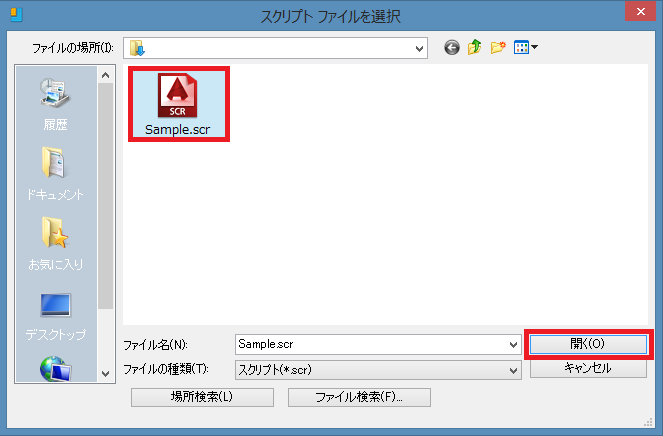

  2. Select the script file to be used in [script select the file dialog, and click the Open button.

  3. Script is run.

It registered the script to the menus and toolbars

It is also possible to use registered in the menus and toolbars of the script.
At CUI command, specify the following to the macro, please create a command.

^C^C_SCRIPT <filepath>

(Example : ^C^C_SCRIPT C:/Test/Sample.scr )

For more information on registration for the commands, [to create a new command in the command list of user customization] Please refer to.
