External reference drawings of the other

Updated : 2016-10-27 08:16:40 UTC

Applicable Products : IJCAD 2013 or later

Other drawings xref to the current drawing file by following these steps:





  1. Open the drawing that's based.
  2. Select the drawing file attached (ATTACH) command, see want.

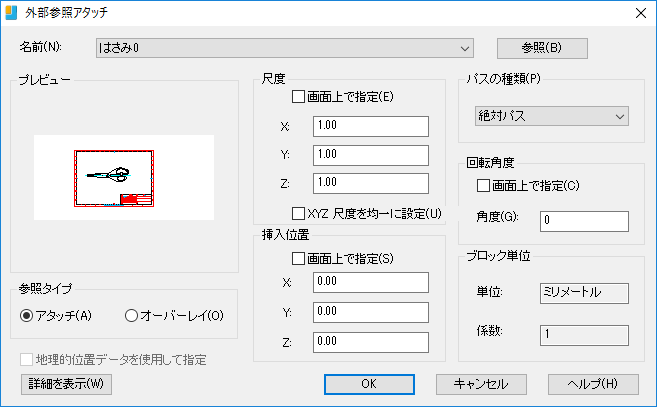

  3. In the attach external reference dialog, click "OK".


    ("Specified on the screen" check box when you specify the insert position, etc..



The difference between the reference type
  • Attach : contains the nested xrefs.
  • Overlay : nested external reference files are not included.
