If the selected figures have cancelled when choosing the command

Updated : 2017-10-25 09:45:49 UTC

Applicable Products : IJCAD 2013 and later


Generally in the default setting of IJCAD, when you execute the edit command for the selected figures, the execution will be done for these selected figures. But it is possible to change this action by setting to "Preselection OFF" and then you have to select the figures always after command execution, even the figures are selected before the execution.

Here explains how to switch the selection ON/OFF.

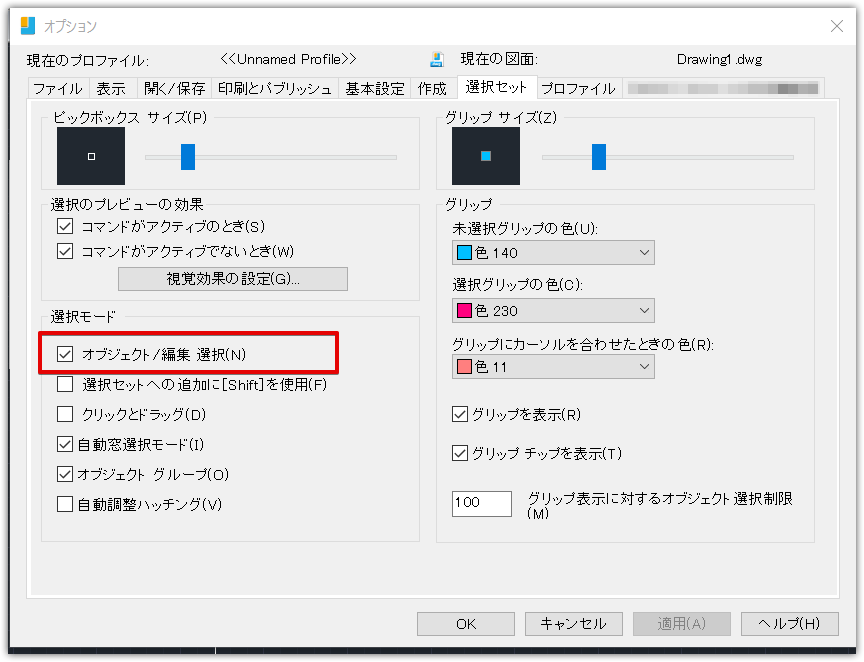

  • When you select the "Noun/verb selection" column of the "Selection Set" tab of Option window, Selection will become ON.

  • You can change by system variable "Pickfirst". When 1=ON, 0=OFF.
