How to change the order of the attribute of Block

Updated : 2016-10-21 08:04:20 UTC

Applicable Products : IJCAD 2014 and later



You can change the the order of the attribute of Block which has been already assigned attribute, such as the title column of the drawing.



  1. Select the block attribute.
  2. Click right button and select the "Block Editor" menu.


  3. Key in the following command into the command line (or dynamic prompt).
    Battorder[Enter]

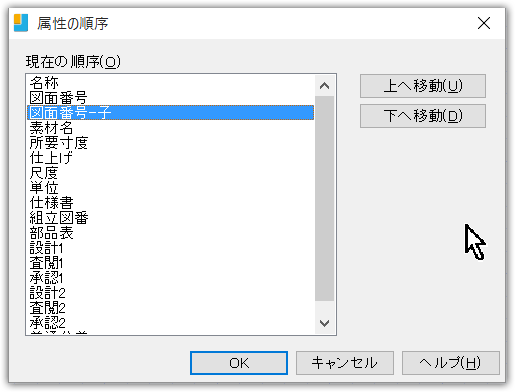

  4. When the attribute sequence dialogue appears, select the item which you want to change the order using "Move up" or "Move down" button.


  5. If you finish the operation, click "OK" button.
  6. Execute save block (_BSAVE) command to update the block attribute.
  7. Execute close block editor (_BCLOSE) command to finish.

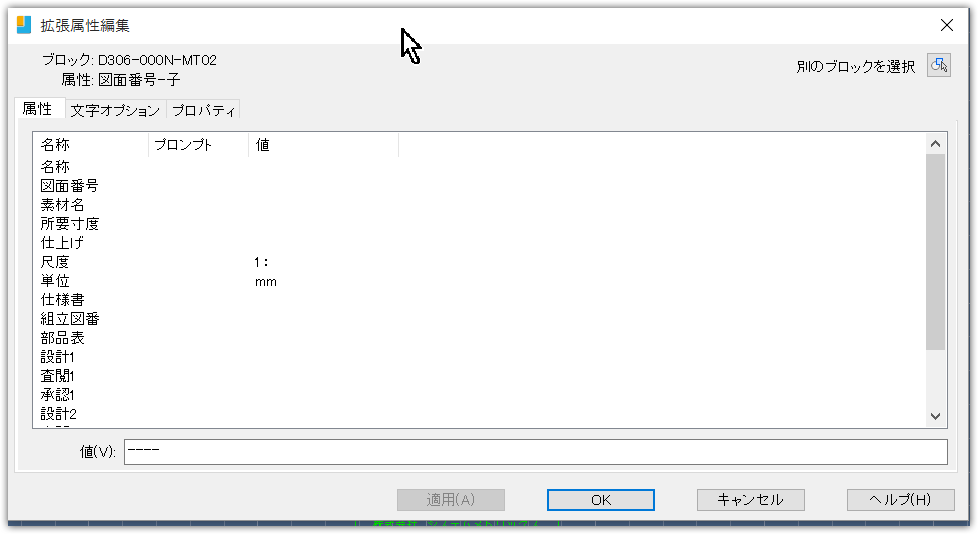

  8. You can confirm the new order in the extension attribute editor, double clicking on this block.
